Natural Gas Dehydration Unit With TEG
Process modeling and simulation with ProSimPlus
Background
information		 Process
modeling		 Simulation
results		 Full
document		 External
resources		 About
ProSim
Simulation results

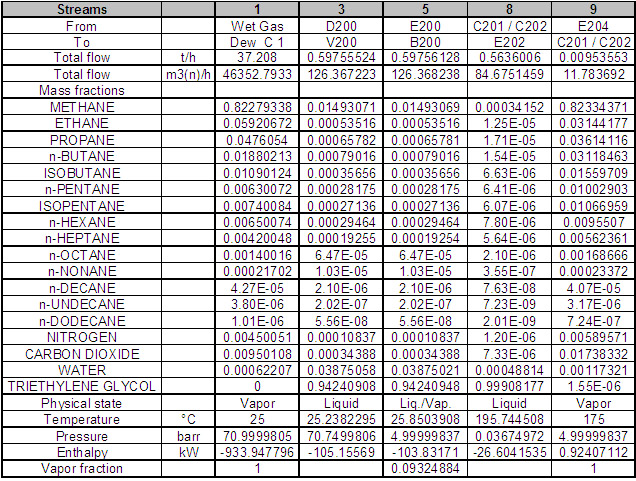

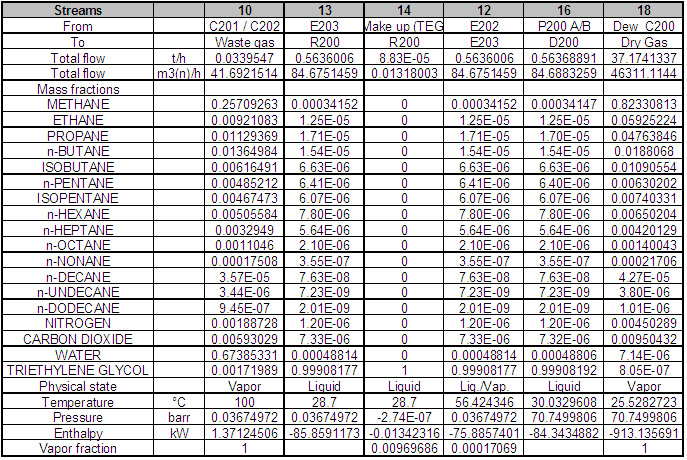

This document presents only the most relevant stream results. In ProSimPlus, mass and energy balances are provided for every stream. Results are also available at the unit operation level.


Dew temperatures
Module Inlet stream Result (°C)
Dew_C 1 1 24.7
Dew C200 17 -40.6


Column profiles

Composition profiles can be accessed after the simulation in each column configuration window, in the “Profiles” tab. Double clicking on the profile will generate the corresponding graph. Please note that, in ProSimPlus, the first stage corresponds to the condenser and the last stage to the reboiler (numbering from top to bottom).

Click on the thumbnails to expand the graph.
D200
(Absorber – Contactor) 		Click to expand

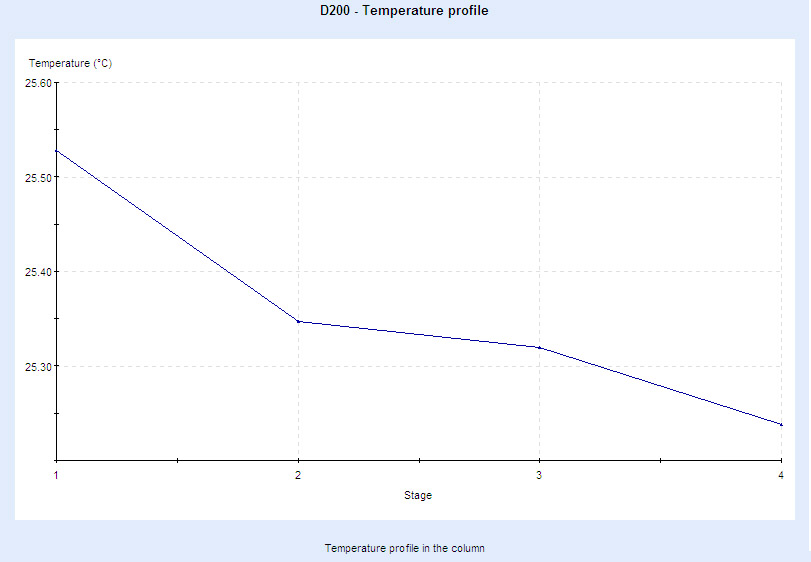

Temperature profile		 Click to expand

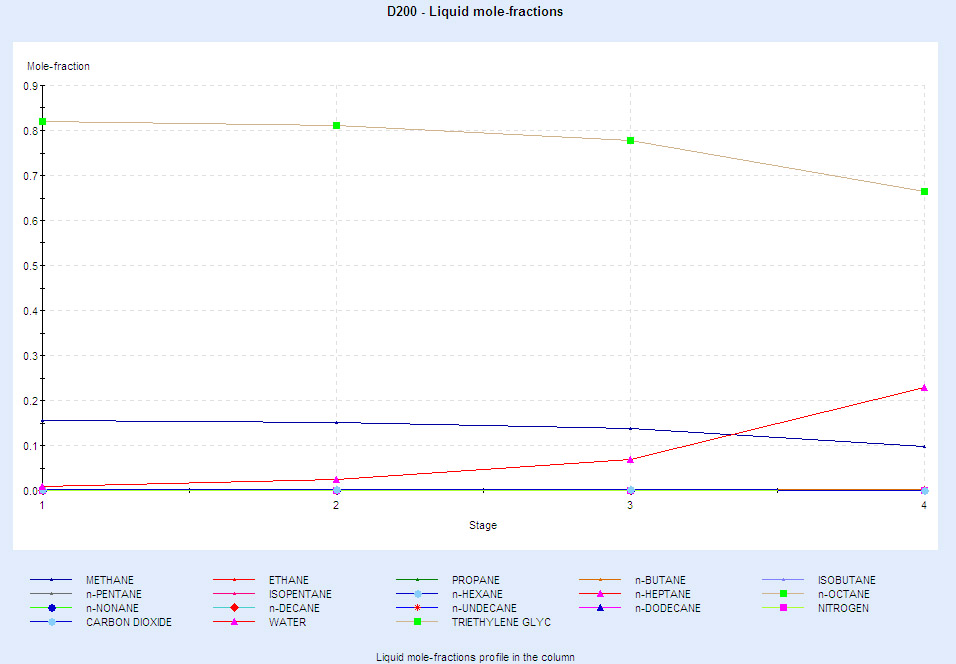

Liquid mole-fractions
C201 / C202
(Regenerator & stripper) 		Click to expand

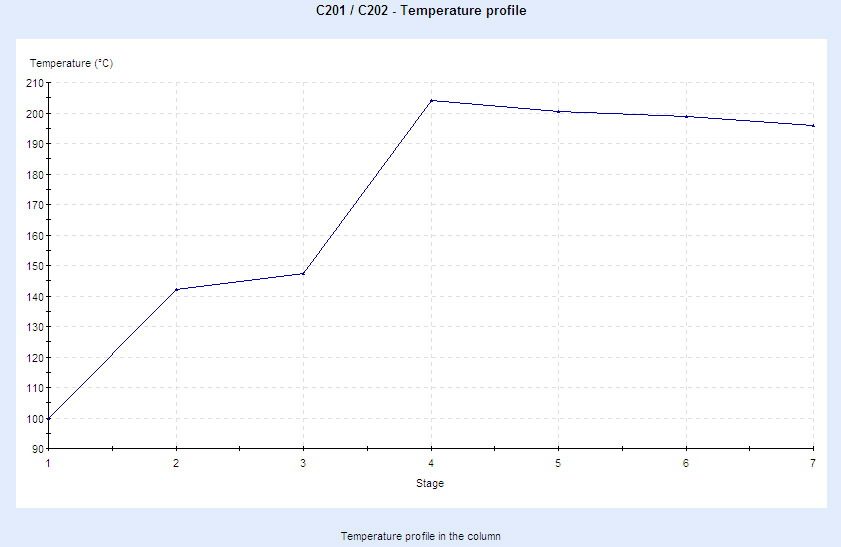

Temperature profile		 Click to expand
Liquid mole-fractions		 Click to expand

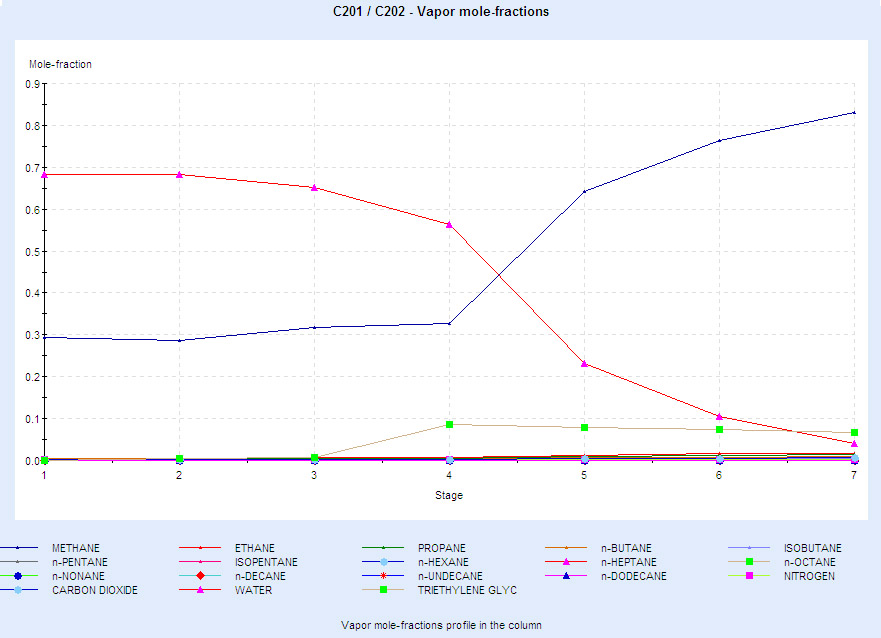

Vapor mole-fractions
